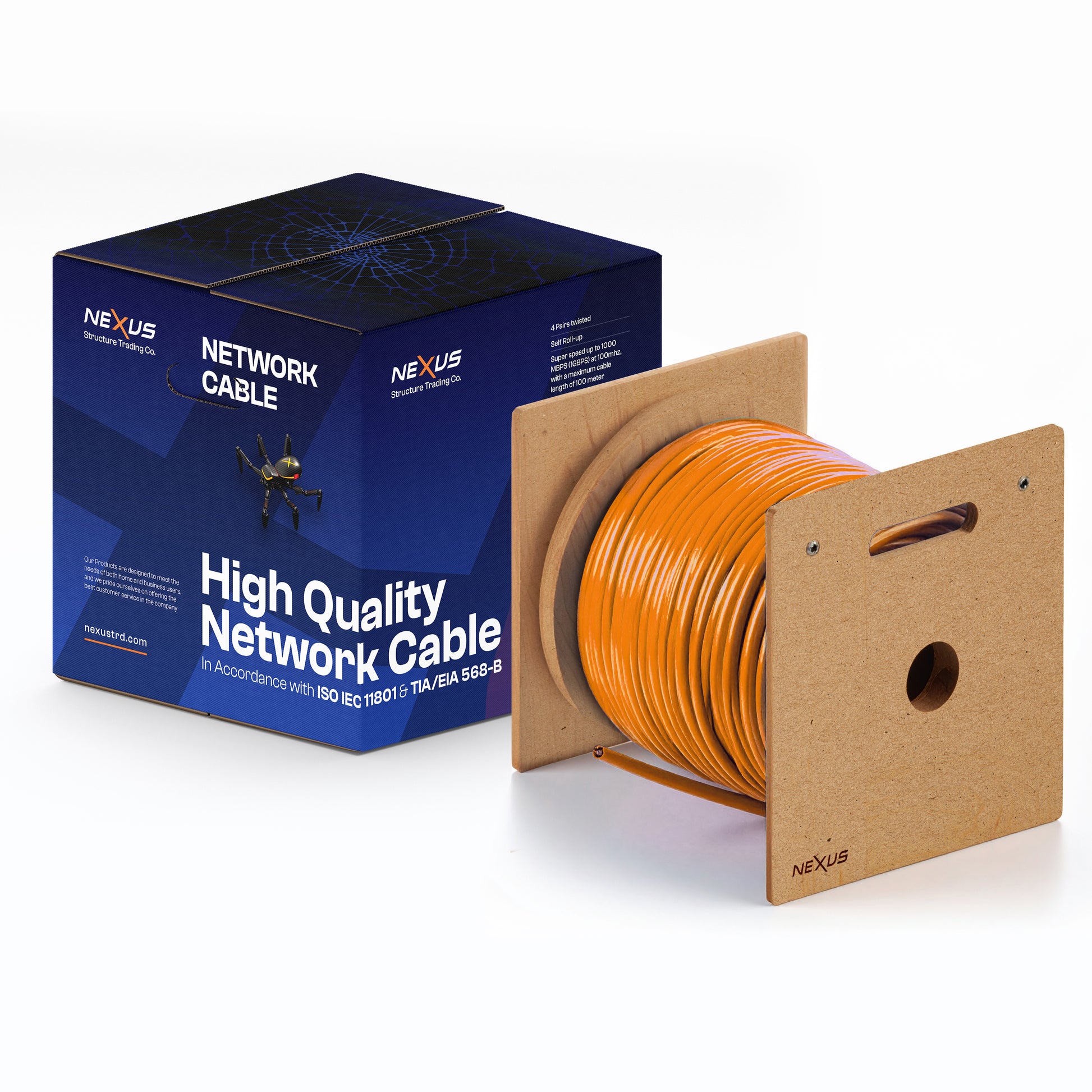

Network CAT6-A Cable (UTP) 305m Self Roll-up Box

Regular price 449.00 AED
Regular price 495.00 AED Sale price 449.00 AED
-46.00 AED
Tax included. Shipping calculated at checkout.
Sheath: PVC Orange
Type: Gold Series
  • American Express
  • Apple Pay
  • Mastercard
  • Visa
  • Secure payments by stripe.
  • Cash on Delivery option available at checkout.

Shop Nexus Products on Trusted Platforms

Responsive Buttons in a Row
Availability: Out of stock
Regular price 449.00 AED
Regular price 495.00 AED Sale price 449.00 AED
  • Pure 99.99% Copper 23AWG 0.57mm
  • 10Gbps Transfer Rate on 500MHZ
  • 100% Pure Light-weight and weather-proof  PVC Sheath
  • Comply with all Category 6 cable standards
  • Support Class E applications
  • Central cross member maintains geometry and performance
  • Tested up to 500MHz


    CAT6A UTP Network Cable – High-Speed, Cost-Effective, and Future-Ready

    Power your network with precision and performance using our CAT6A UTP Ethernet Cable, built for 10 Gigabit Ethernet, enhanced bandwidth, and uninterrupted data flow in demanding environments.

    Engineered for speed and stability, this unshielded twisted pair (UTP) cable delivers up to 10 Gbps of high-speed connectivity over longer distances (up to 100 meters). It’s the go-to choice for professionals who demand high performance without the added bulk or cost of shielding.

    Whether you're wiring a modern office, data center, or smart home, the CAT6A UTP cable is the smart solution for reliable, high-bandwidth networking—affordable, fast, and future-proof.


    Why Choose Our CAT6A UTP Cable?

    • Supports 10 Gigabit Ethernet at 500 MHz bandwidth

    • UTP design for lighter weight and easier installation

    • Reduced alien crosstalk and superior performance over CAT6

    • Durable PVC or LSZH jacket for flexible use and safety

    • Ideal for structured cabling, PoE devices, and enterprise-grade networks


    📊 Technical Specifications

    Feature Details
    Cable Category CAT6A (Category 6 Augmented)
    Cable Type UTP (Unshielded Twisted Pair)
    Conductor Material 100% Bare Copper
    Conductor Size 23 AWG, Solid or Stranded
    Bandwidth Up to 500 MHz
    Data Transmission Rate Up to 10 Gbps
    Jacket Material PVC or LSZH (Low Smoke Zero Halogen), Blue or custom color
    Jacket Diameter Approx. 7.3mm
    Insulation Material High-density polyethylene (HDPE)
    Separator Internal cross filler (X-spline) for pair separation
    Maximum Length for 10G Up to 100 meters
    Temperature Range -20°C to +75°C
    Fire Safety Rating Flame-retardant, LSZH options available
    Standards Compliance ANSI/TIA-568.2-D, ISO/IEC 11801 Class EA, RoHS, CE
    Compatibility Backward compatible with CAT5e, CAT6
    Available Lengths 1m to 500m rolls, or custom-cut lengths

    📦 Perfect For

    ✅ Office LANs & Patch Panels
    ✅ Smart Home Installations
    ✅ IP Cameras & PoE Devices
    ✅ Data Centers & Server Rooms
    ✅ High-Speed Internet Setups



Application

Nexus CAT6A cables are the ideal solution for most of today’s network requirements in normal office environments. They are manufactured and tested to the latest Category 6 specifications defined in the International and American cable standards and are designed to meet the quality and performance criteria needed to support all applications up to 500 MHz.

10baseT Ethernet

100baseTX Fast Ethernet

1000baseTX Gigabit Ethernet

155 MBit ATM

622 MBit ATM

1.2 Gbit ATM

Future class E applications

 1. International:

UL

IEC

CE

TUV

ISO 9001

ANSI/TIA-568-C.2

The CAT6 cable performance is guaranteed to meet or exceed the requirements of the above mentioned standards.Traceability codes on both cable and packaging ensure quality validation of the installed cable.

Design

The LANmark-6 U/UTP cables have a central cross element which helps maintaining the stability of the cable geometry and reduces the risk of a reduction in performance when bending the cable.
The cables are available with a Dark Grey PVC or an Orange LSZH sheath. Both versions have flame retardant properties compliant with IEC 60332-1 .

Performance

Tested to 500 MHz and with guaranteed performance to 500 MHz, Nexus cables exceed the requirements of the International, European and American cable standards, including ISO/IEC 11801, IEC 61156-5, EN 50173, EN 50288 and TIA/EIA 568-C.2.

Installation

To support the correct set-up of hand held analysers for installation testing, the actual cable NVP value is given in the cable’s print legend.

Guarantees

Product Details


Brand

Type

Product specifications


  • Cable type

    CAT6A
  • Speed

    10Gbps
  • Material

    Copper
  • Connector

    RJ45
  • Size

    305 Meter
  • Weight

    15 KG
  • Shield type

    UTP
  • Dimensions

    35*35*35
