Specification
- Fully Bare Copper 23AWG
- Comply with all Category 6 cable standards
- 6 Pcs RJ45 socket Included
- Support Class E applications
- Central cross member maintains geometry and performance
- Tested up to 350MHz
- 24 Month Warranty

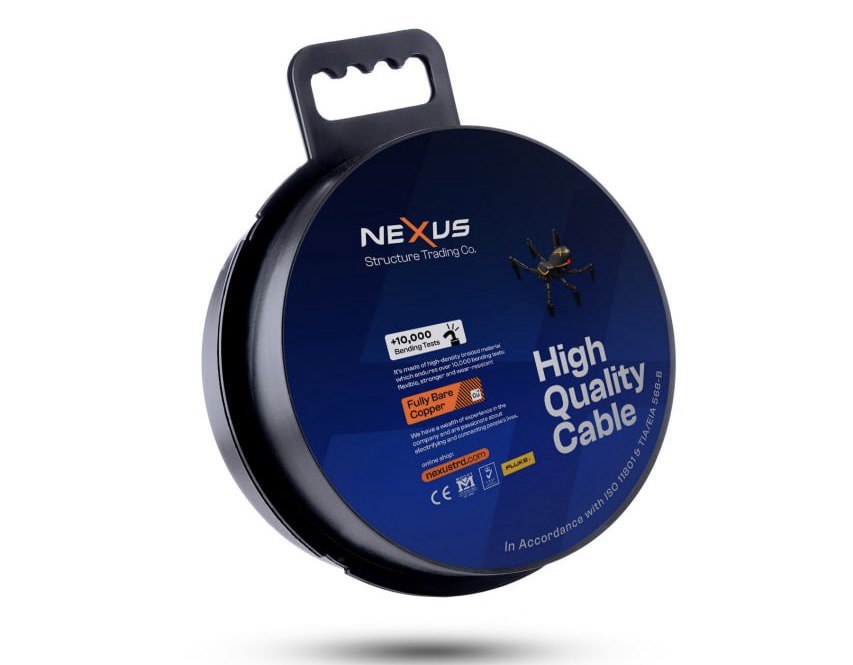

CAT6 UTP Ethernet Cable Roll – 305m (Self Roll-Up Box)
Reliable. High-Speed. Installer-Friendly.
Meet your networking demands with our CAT6 UTP Ethernet Cable – 305 Meter Roll, neatly packaged in a self roll-up dispenser box for smooth, hassle-free installation. Designed to deliver Gigabit speeds with minimal crosstalk, this cable is ideal for structured cabling in homes, offices, commercial buildings, and data networks.
Crafted with 100% bare copper conductors and precision-twisted pairs, this CAT6 cable ensures superior signal integrity, consistent performance, and long-term durability—all in a tangle-free, easy-pull box that saves time on-site.
⭐ Why Choose Our 305m CAT6 UTP Cable?
-
Gigabit-ready with bandwidth up to 250 MHz
-
Easy-pull self roll-up box – zero tangling, zero waste
-
100% bare copper – not CCA, for optimal conductivity
-
Flexible and durable jacket for smooth installations
-
Perfect for PoE, CCTV, routers, access points, and LAN setups
📊 Technical Specifications
Feature | Details |
---|---|
Cable Category | CAT6 (Category 6) |
Cable Type | UTP (Unshielded Twisted Pair) |
Conductor Material | 100% Solid Bare Copper |
Conductor Size | 23 AWG |
Twisted Pairs | 4 pairs (8 wires) |
Bandwidth | Up to 250 MHz |
Data Transmission Rate | Up to 1 Gbps (Gigabit Ethernet) |
Jacket Material | PVC or LSZH (Low Smoke Zero Halogen), available in blue/grey |
Jacket Diameter | Approx. 6.2mm – 6.5mm |
Insulation Material | High-density polyethylene (HDPE) |
Rip Cord | Yes (for easy jacket stripping) |
Length | 305 meters (1,000 feet) |
Packaging | Self Roll-Up Dispenser Box (tangle-free, portable) |
Temperature Range | -20°C to +70°C |
Fire Safety Rating | Flame-retardant PVC |
Compliance Standards | ANSI/TIA-568-C.2, ISO/IEC 11801, RoHS, CE |
Compatibility | Backward compatible with CAT5e and CAT5 |
📦 Ideal For
✅ Office and Home Networks
✅ Patch Panels and Wall Plates
✅ IP Cameras and Access Points
✅ PoE Devices and Switches
✅ LAN & Server Installations
Feature | CAT6 UTP | CAT6A UTP/SFTP | CAT7 S/FTP | CAT8 S/FTP (Braided) |
---|---|---|---|---|
Max Speed | 1 Gbps | 10 Gbps | 10 Gbps | 25–40 Gbps |
Max Bandwidth | 250 MHz | 500 MHz | 600–1000 MHz | 2000 MHz |
Shielding | UTP (Unshielded) | UTP / S/FTP (optional) | S/FTP (Shielded) | S/FTP + Braided Nylon Jacket |
Max Cable Length | 100 meters (for 1 Gbps) | 100 meters (for 10 Gbps) | 100 meters (best up to 50m for full perf) | 30 meters (best for 25–40 Gbps) |
Jacket Type | PVC / LSZH | PVC / LSZH | PVC / LSZH | Braided Nylon over PVC / LSZH |
Conductor | 100% Bare Copper | 100% Bare Copper | 100% Bare Copper | 100% Bare Copper |
Use Case | Home LAN, Office PCs | Data Networks, PoE, CCTV | Professional & Shielded Environments | Gaming, Streaming, Servers, Data Centers |
Backward Compatibility | CAT5, CAT5e | CAT5, CAT5e, CAT6 | CAT6A, CAT6, CAT5e | CAT7, CAT6A, CAT6, CAT5e |
Bendability | Moderate | Moderate | Less Flexible | Highly Flexible (Braided & Slim) |
EMI/RFI Protection | Low | Medium to High (if shielded) | High | Very High (Dual Shielding + Braided) |
Appearance | Standard Cable | Standard Cable | Thicker Industrial Look | Premium Look – Braided & Sleek |
