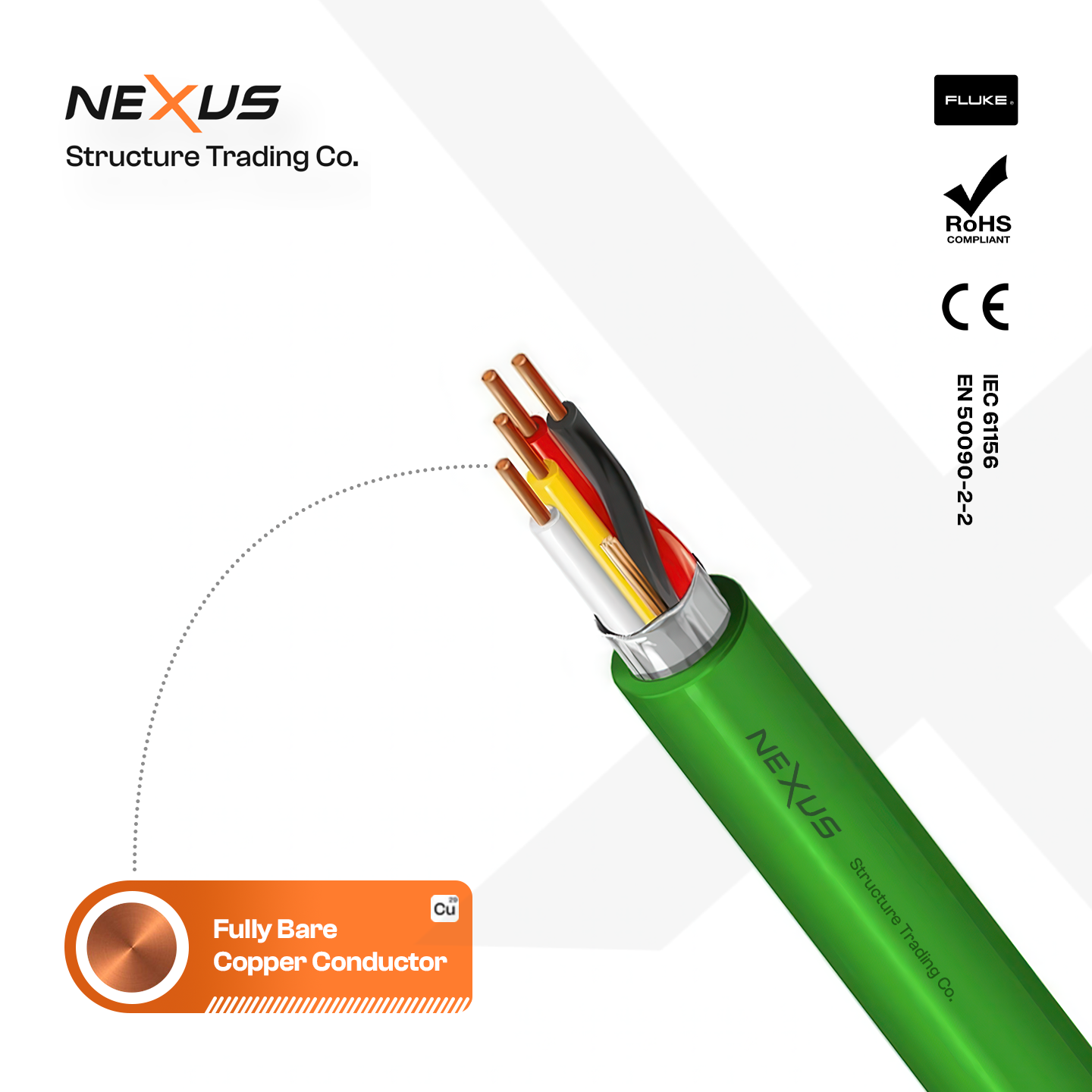

KNX Cable

Elevate your smart building installations with our KXN/EIB Bus Cable, engineered to deliver outstanding performance, reliability, and effortless integration for KNX/EIB home and building automation systems.

Designed with precision and constructed using high-grade materials, this cable ensures optimal data transmission, minimal signal interference, and long-lasting durability, making it the ideal solution for connecting sensors, actuators, and control devices in any KNX setup.

Whether you're outfitting a commercial building, smart home, or industrial facility, our KXN/EIB cable supports fast, safe, and efficient communication across your entire KNX network.

• 100% KNX compliant for seamless integration with all certified devices

• Halogen-free (LSZH) & flame-retardant (PVC) for enhanced safety

• Twisted pair design for superior signal integrity

• Easy to strip, flexible, and installer-friendly

• Ideal for in-wall, conduit, and surface-mounted installations

• 📊 Technical Specifications

  Feature	Details

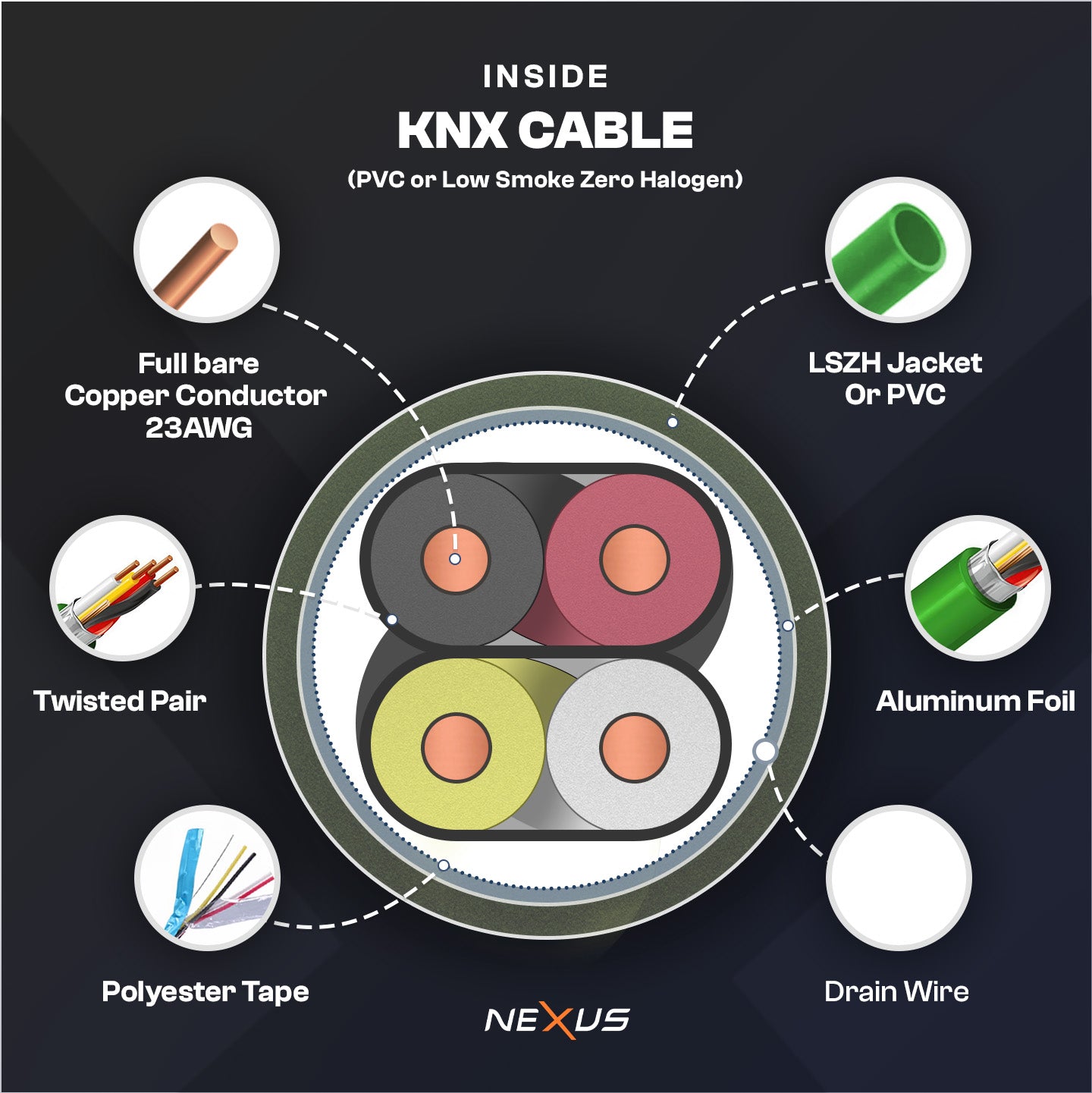

  Cable Type	KNX / EIB (European Installation Bus)
  Conductor	Solid bare copper
  Conductor Size	2 x 2 x 0.8 mm (twisted pair)
  Insulation Material	Polyethylene (PE)
  Outer Jacket	PVC or LSZH (Low Smoke Zero Halogen), green color
  Operating Voltage	300 V
  Test Voltage	2000 V
  Temperature Range	-20°C to +70°C (fixed installation)
  Fire Performance	Flame-retardant, Halogen-free (if LSZH), IEC 60332-1 compliant
  Impedance	100 ohm ± 15%
  Capacitance	≤ 100 nF/km
  Resistance	≤ 73.2 ohm/km
  Application	Building automation, KNX systems, smart home systems

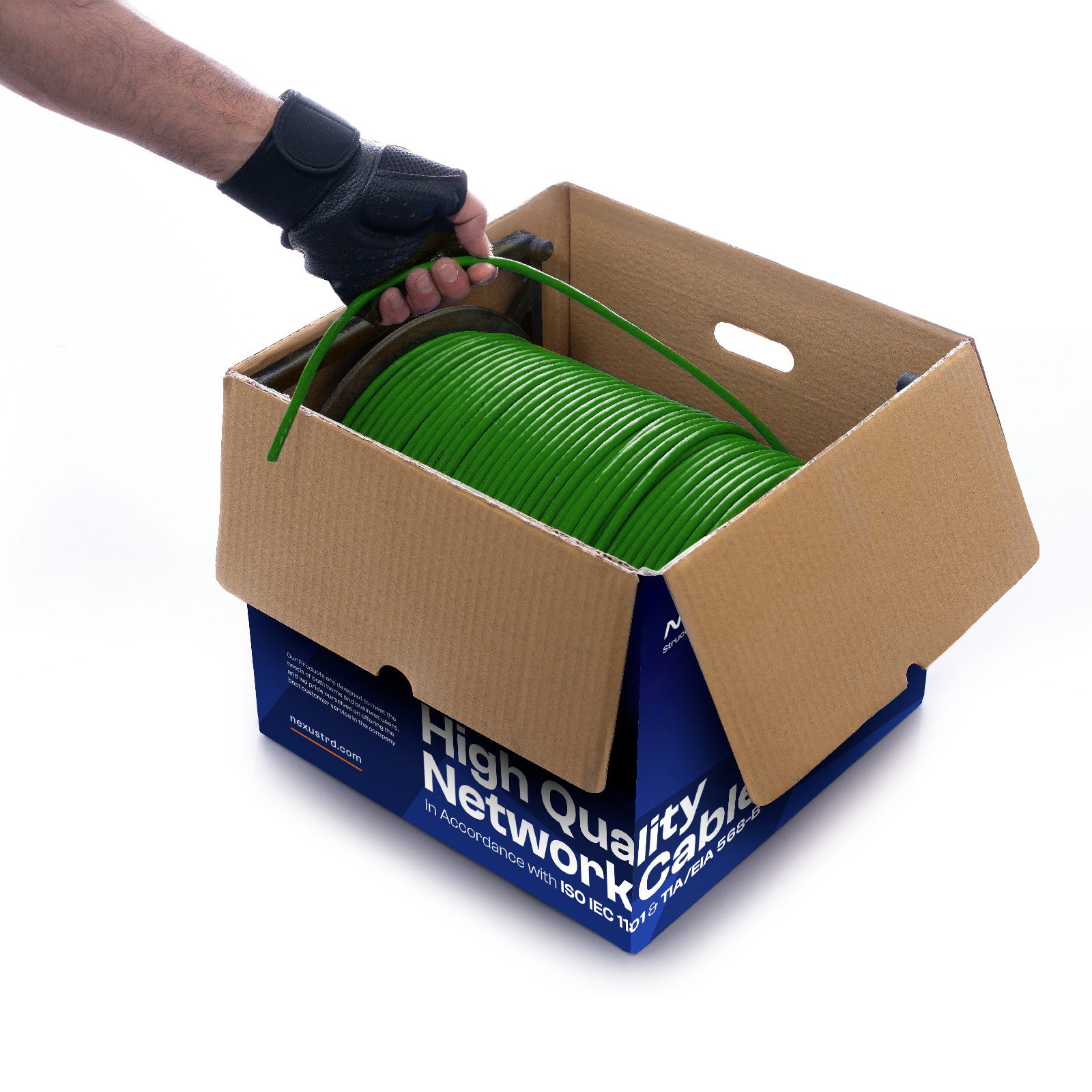

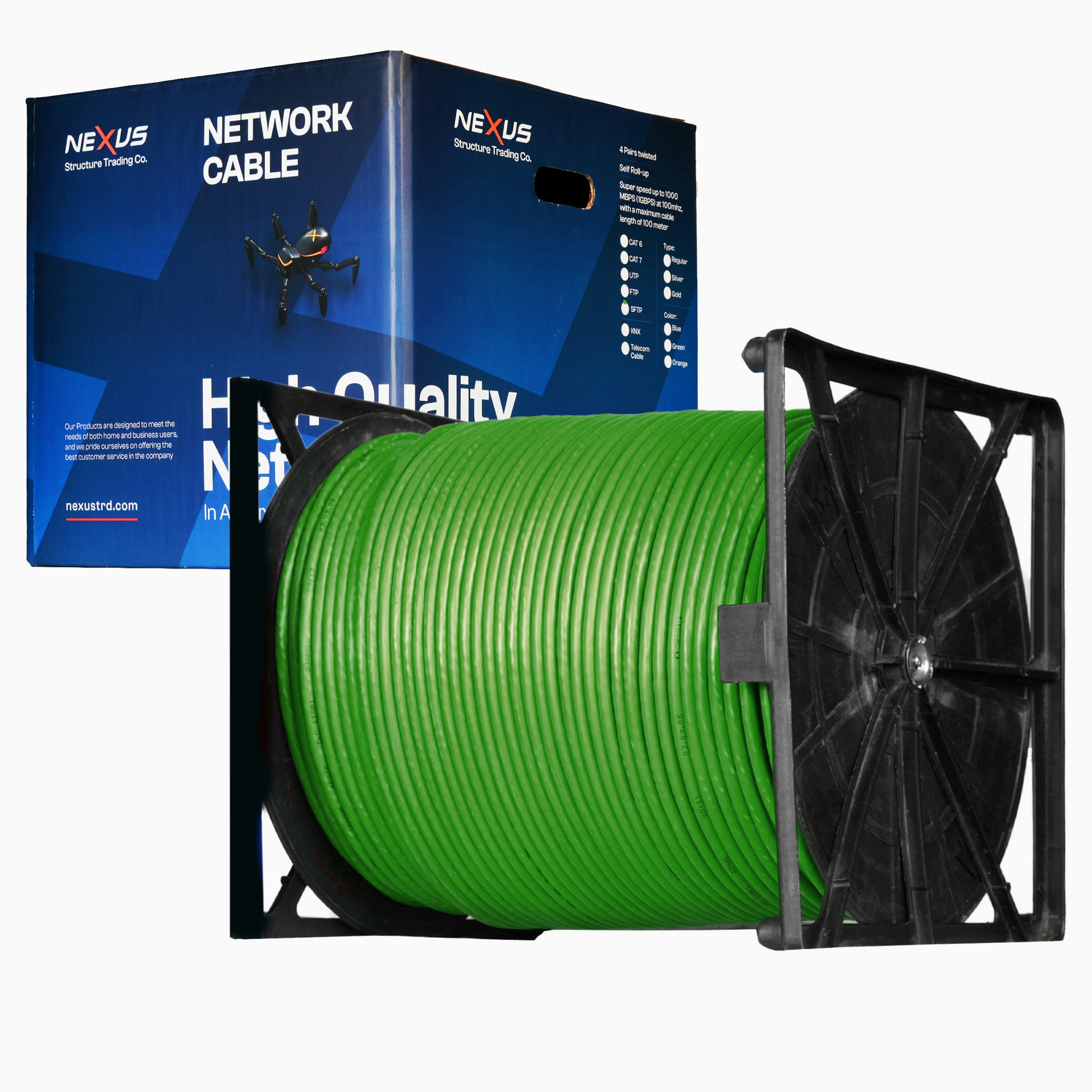

  Packaging Options	100m / 305m / 500m rolls or custom lengths available
  Standards Compliance	EN 50090-2-2, IEC 61156, CE, RoHS



  📦 Perfect For

  ✅ Smart Homes
  ✅ Office Buildings
  ✅ Hotels
  ✅ Industrial Automation
  ✅ Schools & Public Institutions
