Network CAT6A Cable (SFTP) 305m Self Roll-up Box
Couldn't load pickup availability
- Secure payments by stripe.
- Cash on Delivery option available at checkout.
Shop Nexus Products on Trusted Platforms
![Icon](https://cdn.shopify.com/s/files/1/0650/3212/6661/files/Amazon-icon_430x.png?v=1725550532"){kind=icon}
amazon.ae
noon
Microless
🔌 CAT6A S/FTP Network Cable – LSZH & PVC Jacket
Fluke-Tested. Interference-Proof. Lightning-Fast.

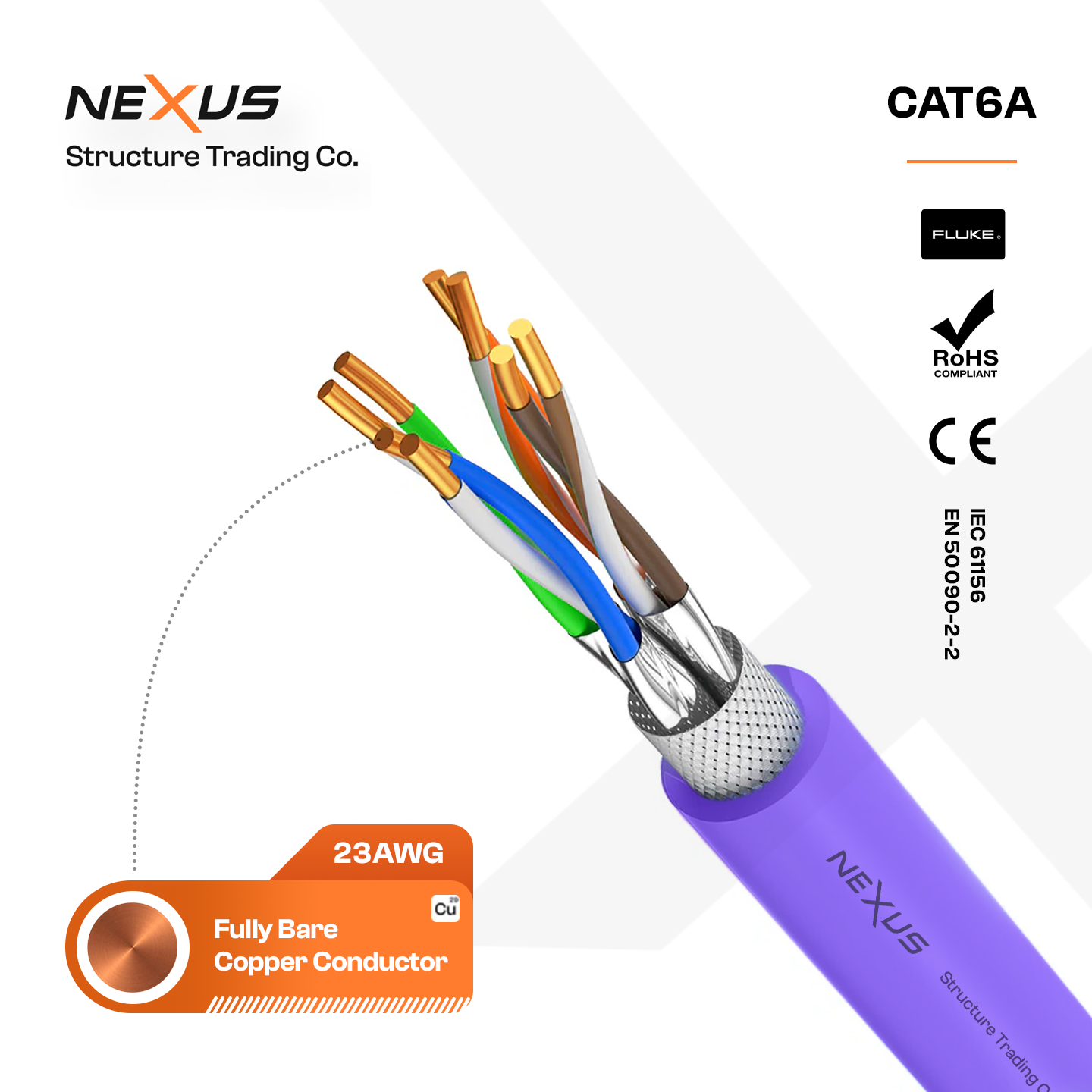

Push your network to its peak with our CAT6A S/FTP (Shielded Foiled Twisted Pair) 23AWG Ethernet Cable, engineered for 10 Gigabit Ethernet at up to 100 meters with exceptional shielding and data integrity.
Every cable is individually Fluke® test certified, ensuring it exceeds TIA/EIA and ISO/IEC performance standards. You’re not just getting premium materials—you’re getting guaranteed performance, backed by lab-grade test results.
Choose between a Low Smoke Zero Halogen (LSZH) jacket for safety-critical zones or a PVC jacket for general use. With 100% bare copper conductors, double shielding, and noise immunity, this cable is built for the most demanding environments—from enterprise data centers to smart homes.
⚡ Top Features
-
✅ Fluke® Certified & 100% Tested – Every reel fully tested for NEXT, RL, and attenuation
-
⚙️ S/FTP Design – Individually foil-shielded pairs + overall braid for maximum EMI protection
-
🔥 Available in LSZH & PVC Jackets – Safe for enclosed areas or cost-effective for open runs
-
🔌 Supports 10 Gigabit Ethernet over full 100m channel
-
🔋 PoE / PoE+ Compatible – Ideal for cameras, access points, and VoIP devices
-
🌐 Guaranteed to Pass All Cable Certification Tests – Performance you can trust
📊 Technical Specifications
| Specification | Details |
|---|---|
| Category | CAT6A (Augmented Category 6) |
| Cable Type | S/FTP (Shielded Foiled Twisted Pair) |
| Conductor Material | 100% Bare Copper |
| Conductor Size | 23 AWG |

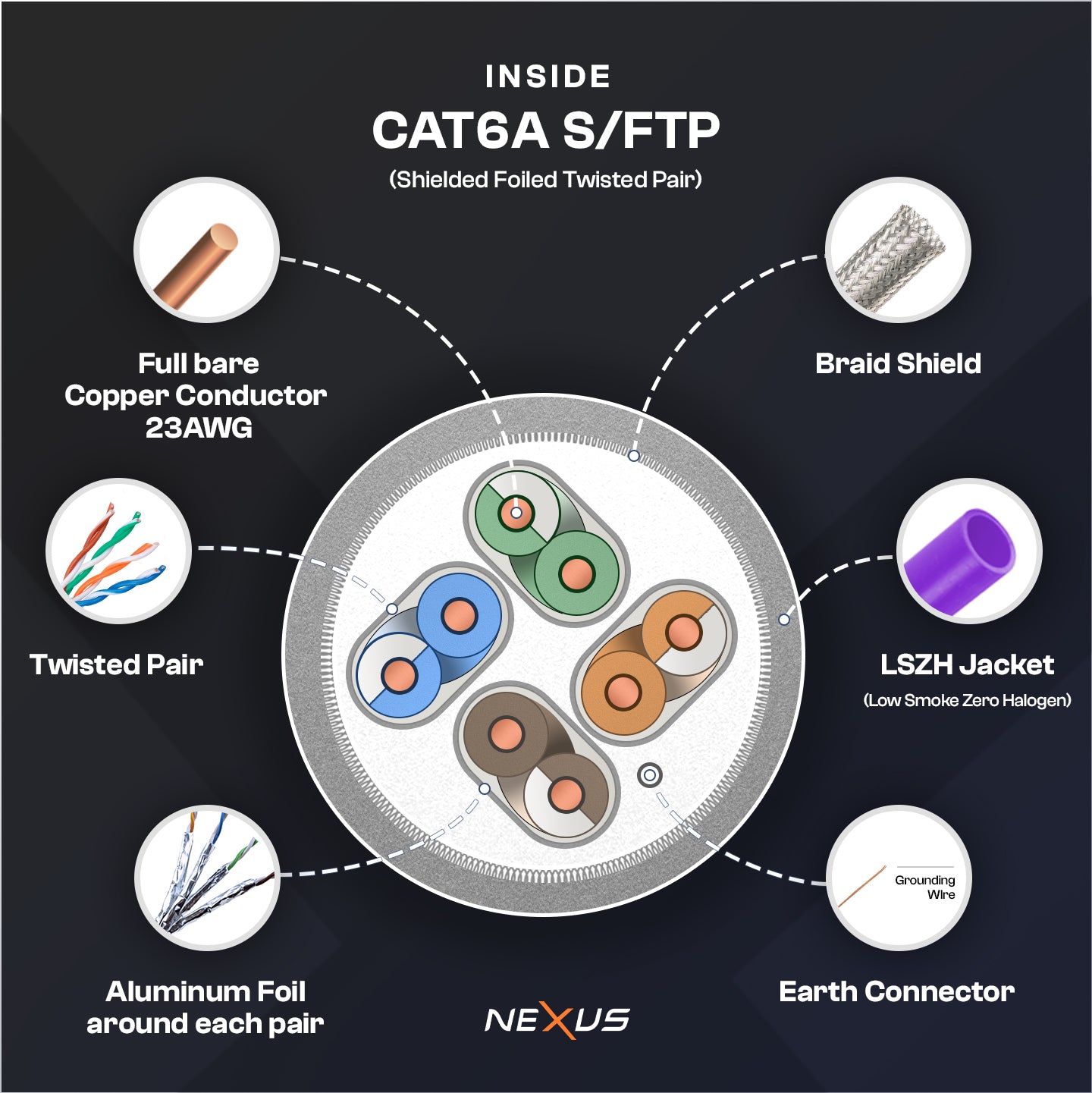

| Shielding | Aluminum foil for each pair + overall braided screen |
| Bandwidth | 500 MHz |
| Max Data Rate | 10 Gbps (up to 100 meters) |
| Jacket Type | LSZH (Low Smoke Zero Halogen) / PVC |
| Outer Diameter | 7.0mm ± 0.2mm |
| Fire Ratings | IEC 60332-1 (LSZH), UL CM (PVC) |
| Testing | ✅ Fully Fluke® Tested – Passes all field certification tests |
| Compliance | ISO/IEC 11801, ANSI/TIA-568.2-D, RoHS, CE |
| PoE Support | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
| Operating Temperature | -20°C to +75°C |
| Length Options | 100m, 305m reels or custom cuts |
| Packaging | Wooden Reel / Self-Roll Box |
🏗️ Recommended Applications
-
🚀 High-Speed Data Centers & Server Rooms
-
🏢 Commercial and Enterprise Structured Cabling
-
🧯 LSZH for Government, Hospitals, and Airports
-
📹 PoE Security & CCTV Installations
-
🏠 Home Automation & Smart Networking
💯 Performance. Shielding. Certification – Guaranteed.
With Fluke-tested certification on every reel, you can be 100% confident that your CAT6A S/FTP cable will deliver exceptional speed, low signal loss, and total shielding reliability—no guesswork, no compromises.
Plug it. Test it. Trust it.

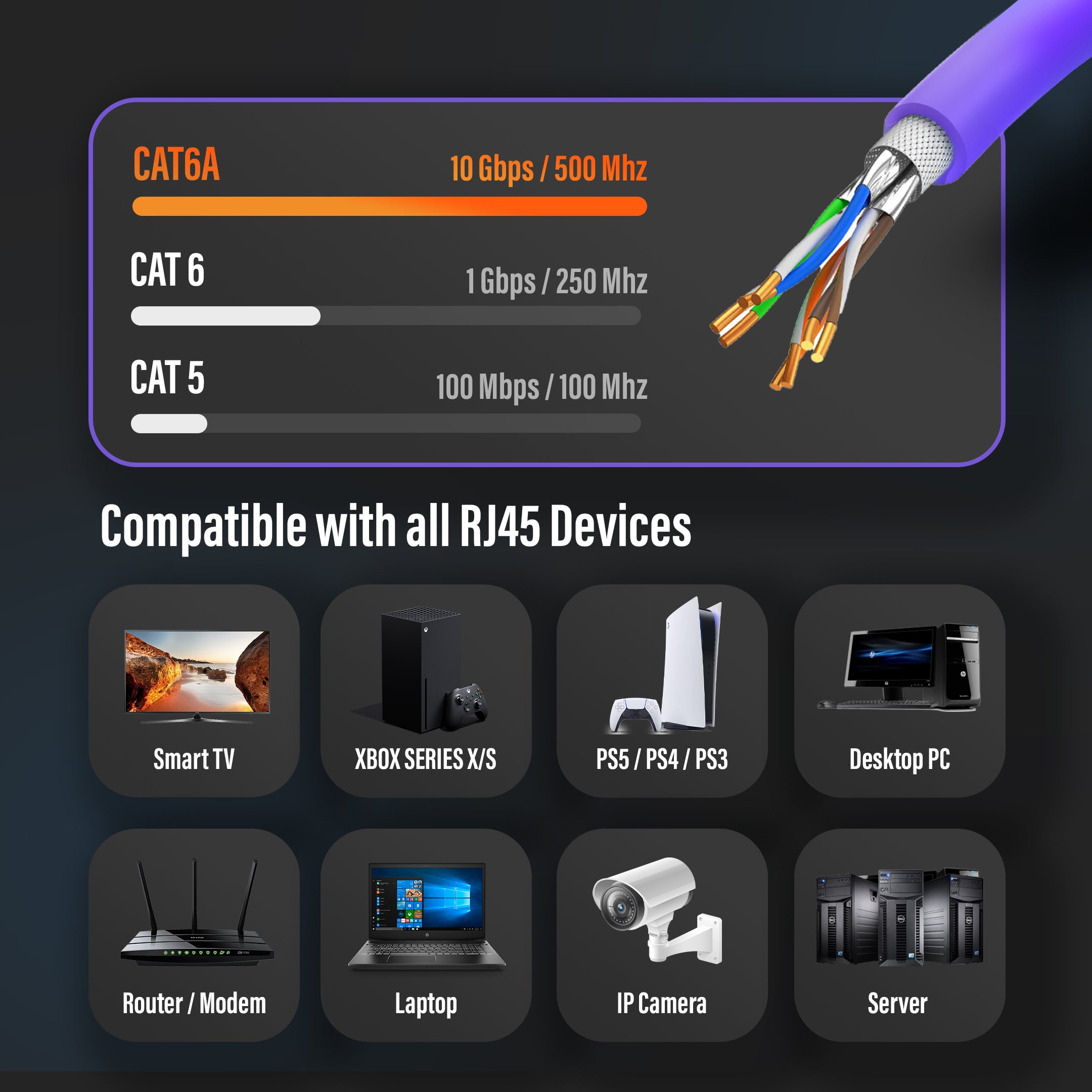

| Feature | CAT6 UTP | CAT6A UTP/SFTP | CAT7 S/FTP | CAT8 S/FTP (Braided) |
|---|---|---|---|---|
| Max Speed | 1 Gbps | 10 Gbps | 10 Gbps | 25–40 Gbps |
| Max Bandwidth | 250 MHz | 500 MHz | 600–1000 MHz | 2000 MHz |
| Shielding | UTP (Unshielded) | UTP / S/FTP (optional) | S/FTP (Shielded) | S/FTP + Braided Nylon Jacket |
| Max Cable Length | 100 meters (for 1 Gbps) | 100 meters (for 10 Gbps) | 100 meters (best up to 50m for full perf) | 30 meters (best for 25–40 Gbps) |
| Jacket Type | PVC / LSZH | PVC / LSZH | PVC / LSZH | Braided Nylon over PVC / LSZH |
| Conductor | 100% Bare Copper | 100% Bare Copper | 100% Bare Copper | 100% Bare Copper |
| Use Case | Home LAN, Office PCs | Data Networks, PoE, CCTV | Professional & Shielded Environments | Gaming, Streaming, Servers, Data Centers |
| Backward Compatibility | CAT5, CAT5e | CAT5, CAT5e, CAT6 | CAT6A, CAT6, CAT5e | CAT7, CAT6A, CAT6, CAT5e |
| Bendability | Moderate | Moderate | Less Flexible | Highly Flexible (Braided & Slim) |
| EMI/RFI Protection | Low | Medium to High (if shielded) | High | Very High (Dual Shielding + Braided) |
| Appearance | Standard Cable | Thicker than Standard Cable | Thicker Industrial Look | Premium Look – Braided & Sleek |
