Enterprise-grade OM4 duplex fiber patch cord engineered for high-speed data center and structured cabling environments. Designed for 10G / 40G / 100G optical transmission with precision LC UPC connectors and ultra-low signal attenuation.

🔷 Key Features

✔ OM4 Multimode 50/125µm Fiber

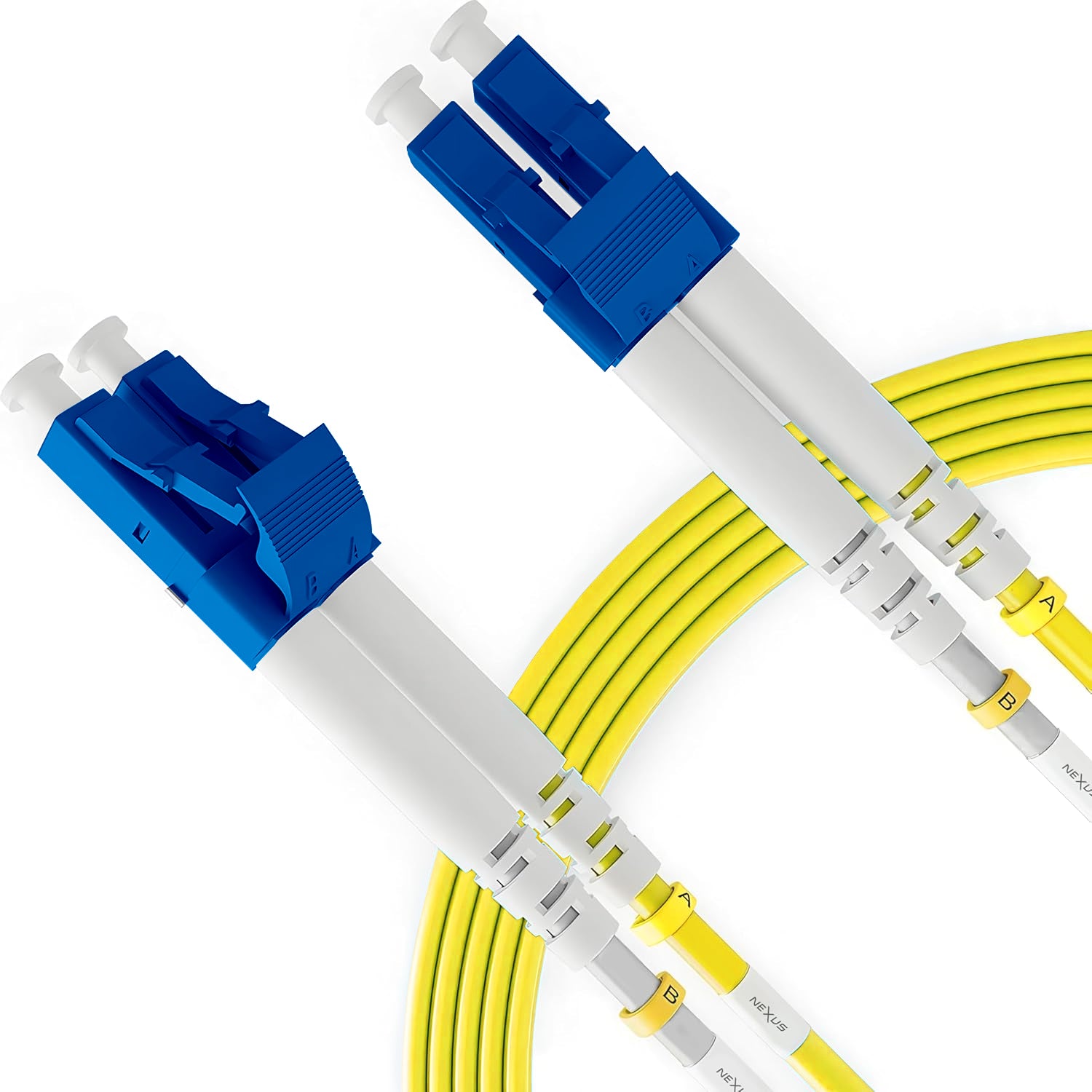

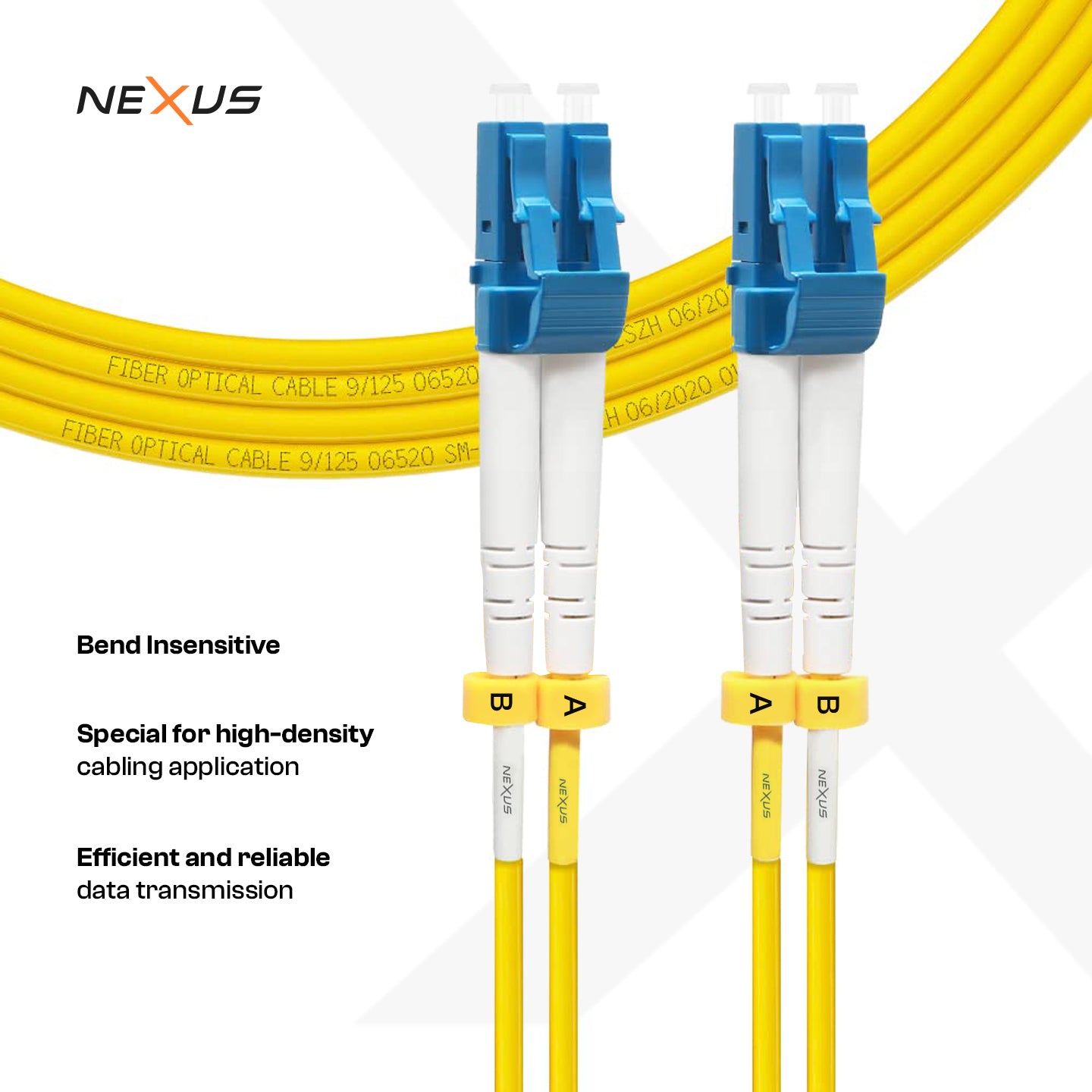

✔ LC UPC to LC UPC – Duplex (A-B)
✔ Insertion Loss < 0.27 dB
✔ Return Loss < 33.1 dB
✔ 4700 MHz·km @ 850nm Bandwidth
✔ 3.0mm LSZH Jacket (Low Smoke Zero Halogen)
✔ Supports 10G / 40G / 100G SR Optics

🔷 Performance Overview

Built for modern high-bandwidth optical networks, the NEXUS OM4 duplex patch cord ensures reliable short-reach transmission in enterprise and data center infrastructures.

Supported Transmission Distances (SR Optics):

• 10GBASE-SR – up to 400m
• 40GBASE-SR4 – up to 150m
• 100GBASE-SR4 – up to 150m

Rated at 4700 MHz·km @ 850nm for superior bandwidth headroom compared to OM3 fiber.

🔷 Build & Construction

The 3.0mm LSZH outer jacket provides enhanced mechanical durability and bend protection while minimizing toxic emissions in enclosed spaces.

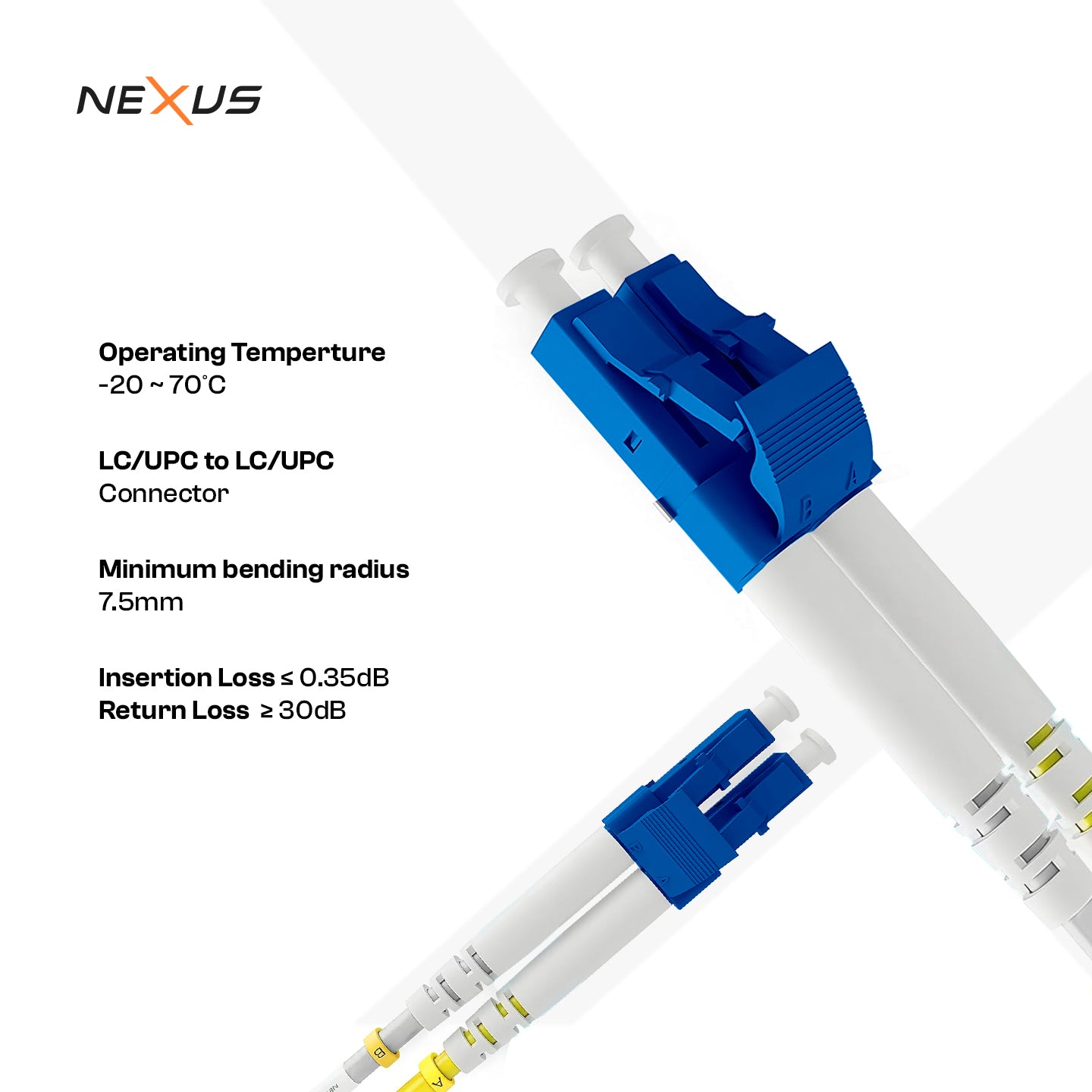

Precision LC UPC connectors are factory polished to deliver:

• Low insertion loss (<0.27 dB)
• Low return loss (<33.1 dB)
• Reduced back reflection
• Stable optical alignment

Designed for professional installations including racks, patch panels, ODF systems, and switch uplinks.

🔷 Technical Datasheet

🔷 Applications

• Data Centers
• Enterprise Network Infrastructure
• Switch-to-Switch Uplinks
• Patch Panel Connections
• SFP+ / QSFP Modules
• High-Speed Server Connectivity
